With Electric Monorail Trolley 2 Ton Electric Chain Hoist

FOB Reference Price:Get Latest Price
$300.00 - $800.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
HHBB
Maximum Lifting Weight:
2t
Maximum Lifting Height:
100m
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 10 Sets)
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Construction works
Condition:
New
Place of Origin:
Hebei, China
Brand Name:
Yongte
Usage:
Construction Hoist
Power Source:
Electric
Sling Type:
Chain
Lift Speed:
6.6m/min
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Video technical support, No overseas service provided
Standard Lifting Heigh:
3m
Test load:
2(ton)
Travelling Speed:
10 or 20 m/min
Travelling Motor:
0.45 kW
Lifting Motor:
3.0 kW
Working Voltage::
3P/ 200V-600V
Control Voltage:
24V/36V/48V
Working Level:
M4/1Am
Key Words:
electric chain hoist
Supply Ability
Supply Ability:
1000000 Set/Sets per Month electric chain hoist
Packaging & Delivery
Packaging Details
As per your reques

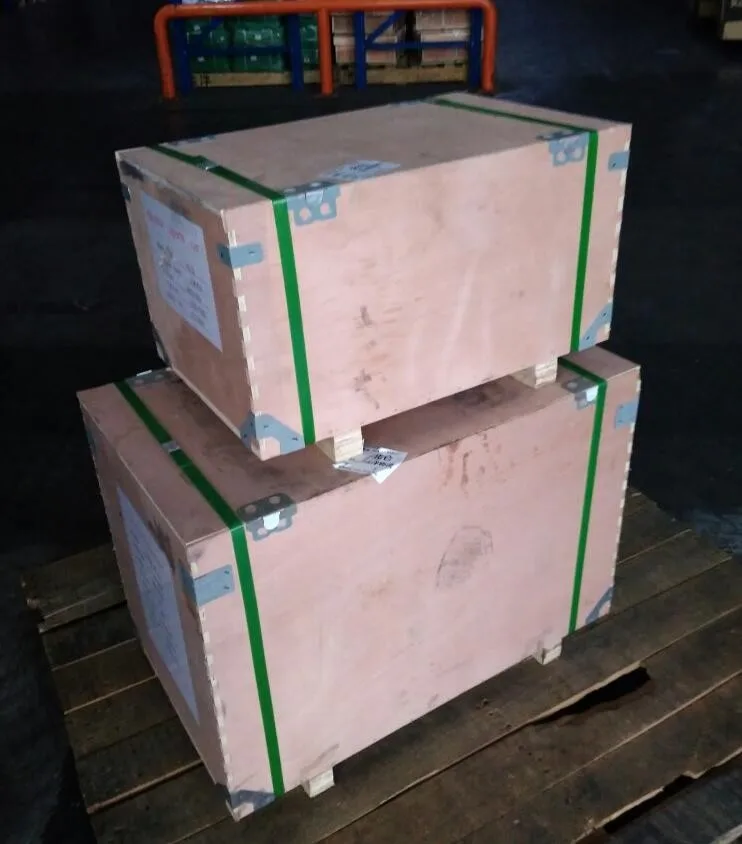

Plywood packing (composite material box), pallet
Port
Shanghai, shenzhen
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 7 To be negotiated
Product Description

Product Application

Electric Chain hoist is typical of unique optimal structure in shortening the distance between the machine body and the beam tracks, applicable to operations in side low buildings, especially suitable for use in temporarily erected plant buildings or on the sites where expansion of effective hoisting spaces inside the buildings is required the Most important parts of the Machine is Chain and brake system.

Model
HHBB0.5-01
HHBB1-01
HHBB2-01
HHBB3-01
HHBB5-02
Capacity(t)
0.5
1
2
3
5
Standard Lifting Height(m)
3
3
3
3
3
Lifting Speed(m/min)
6.8
6.6
6.6
5.4
2.7
Lifting motor
Power(kw)
0.75
1.5
3
3
3
Rotation Speed(r/min)
1440
1440
1440
1440
1440
Phases
3
3
3
3
3
Voltage(v)
200-660
200-660
200-660
200-660
200-600
Frequency(Hz)
50/60
50/60
50/60
50/60
50/60
Operating Motor
Power(kw)
0.4
0.4
0.4
0.75
0.75
(Electric Trolley Type)
Rotation Speed(r/min)
1440
1440
1440
1440
1440
Operating Speed(m/min)
11/21
11/21
11/21
11/21
11/21
Phases
3
3
3
3
3
Volatge(v)
200-660
200-660
200-660
200-660
200-600
Frequency(Hz)
50/60
50/60
50/60
50/60
50/60
Load Chain Falls
1
1
1
1
1
Chain Specification
Ø6.3
Ø7.1
Ø10.0
Ø11.2
Ø11.2
Test Load(t)
0.625
1.25
2.5
3.75
5.5
Weight(g)
42/47
59/64
109/121
113/125
135/150
I-Beam(mm)
58-153
58-153
82-178
100-178
100-178
(Electric Trolley Type)
58-153
58-153
82-178
100-178
100-178
Chain Add Weight Per Meter(Kgs)
1
1.1
2.3
2.8
5.6

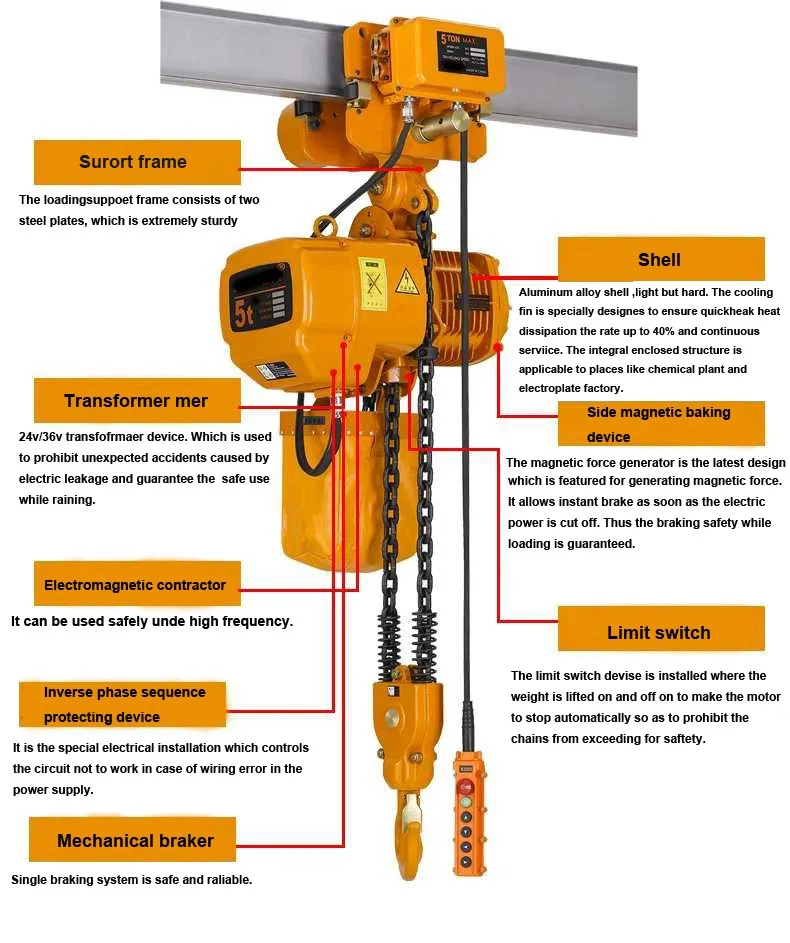

Sheel:
1. The Maxload Electric Chain Hoist is made of light aluminum alloy shell, light but hard.
2. With cooling fin, easy and quick Bring the Heat out.
Break System:
1. Side Magnetic Braking Device, Ensure lock the hoist
2. Mechanical braker, Dual braking system, much more safety.
Limit Switch:
With up & down Limit Switch, to prohibit the chains from exceeding for safety.

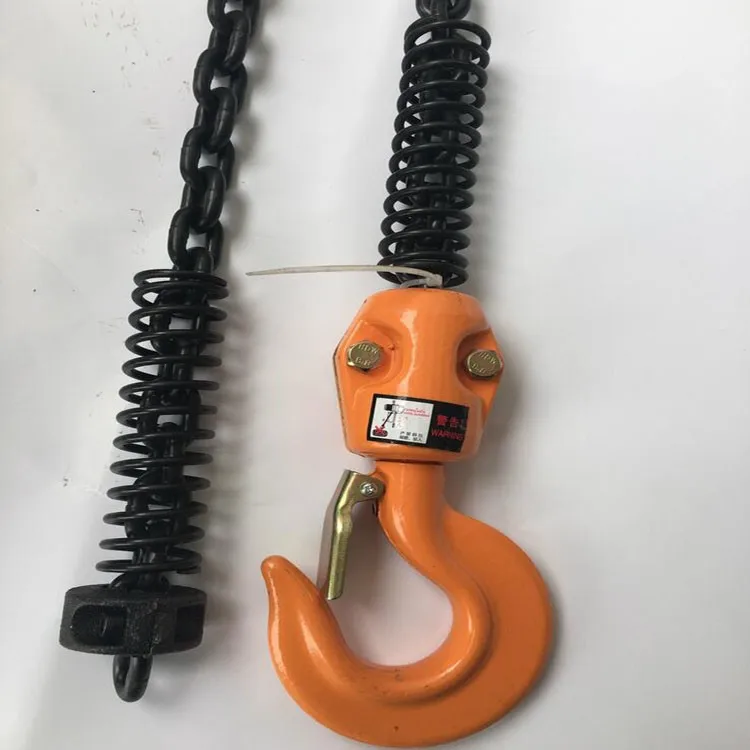

Chain:
FEC G80 Chain, Origina imported from Japan. Anti-Rust and Anti-corrosion
Electromagnetic contactor:
1. With Schneider Electric (TESSIC), can be used safely under high frequency.
2. Can be installed Variable-Vrequency Drive (VFD Electric) Can be suitable for Singlle Phase Power supply.
Inverse phase sequence protecting device:
It is sepcial electrical installation which controls the circuit not to work in case of wiring error in the power supply.
Gear:
The gear made of alloy steel, Through the heat treatment.
Level of Protection Grade(IP Grade):
1. Hoist IP Grade: IP54
2. Push Buttom IP Grade: IP65
Power supply:
All kinds of voltage can be custom-made. 200V-660V, 50HZ/60HZ, 1P/3P
Working Grade:
M4/1Am

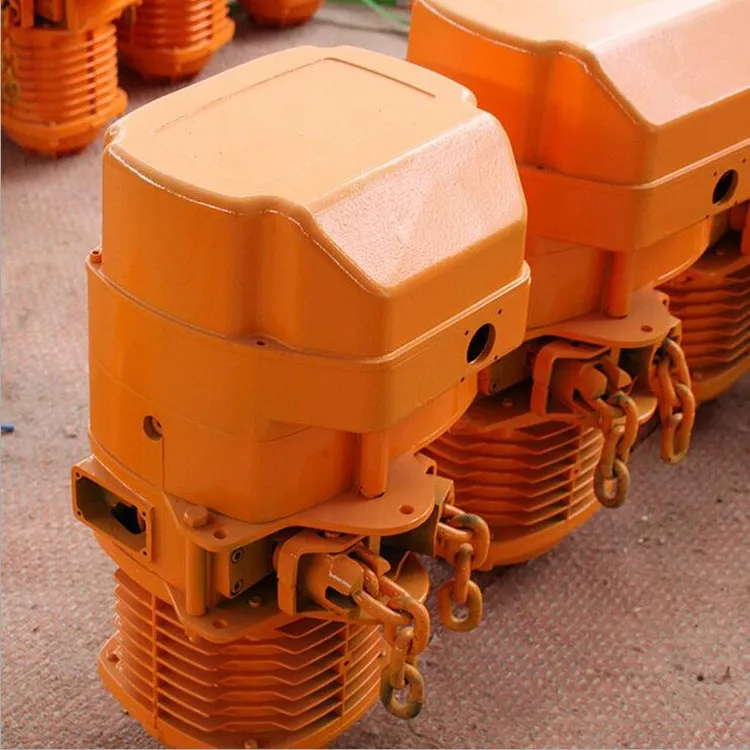

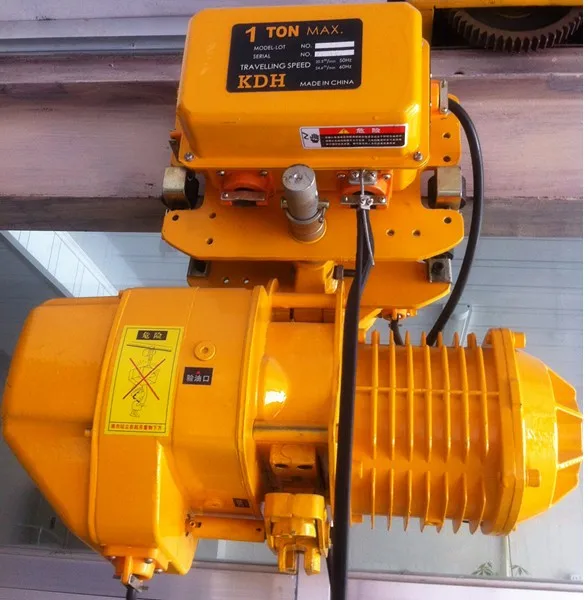

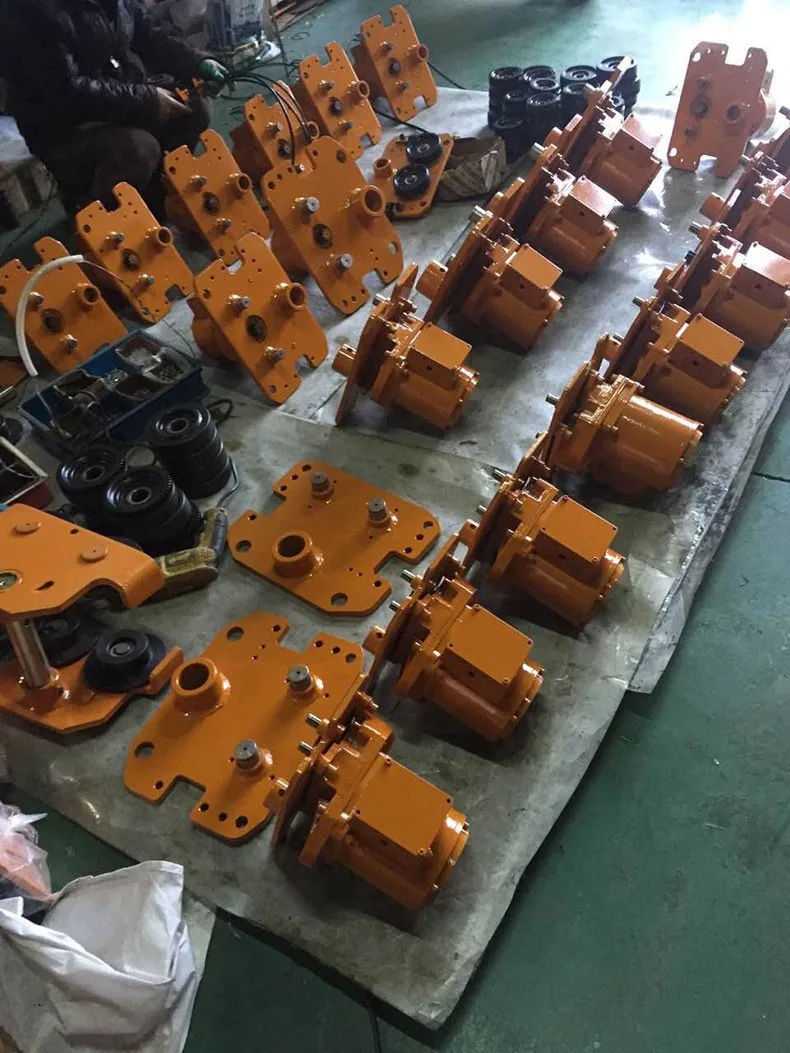

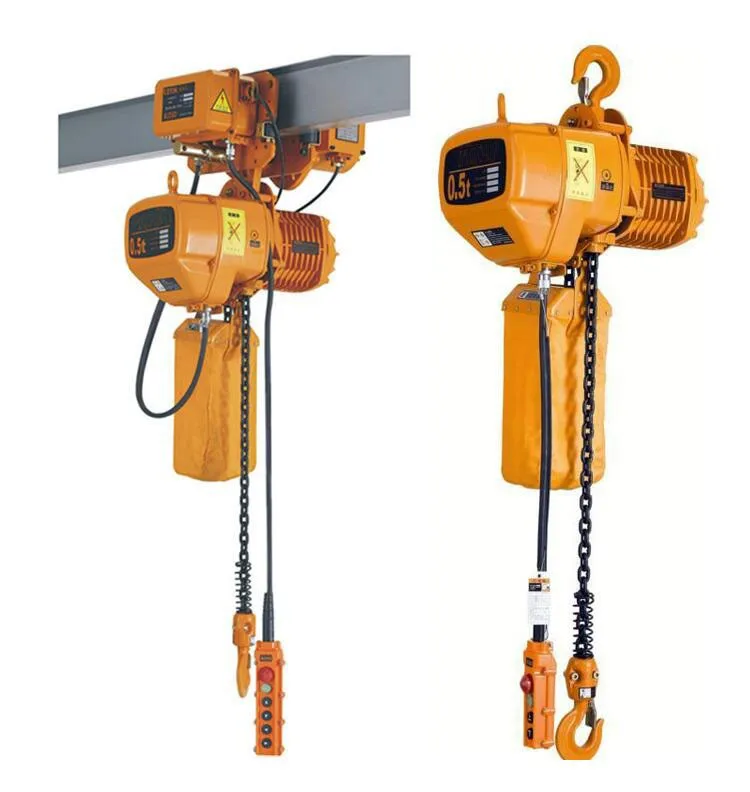

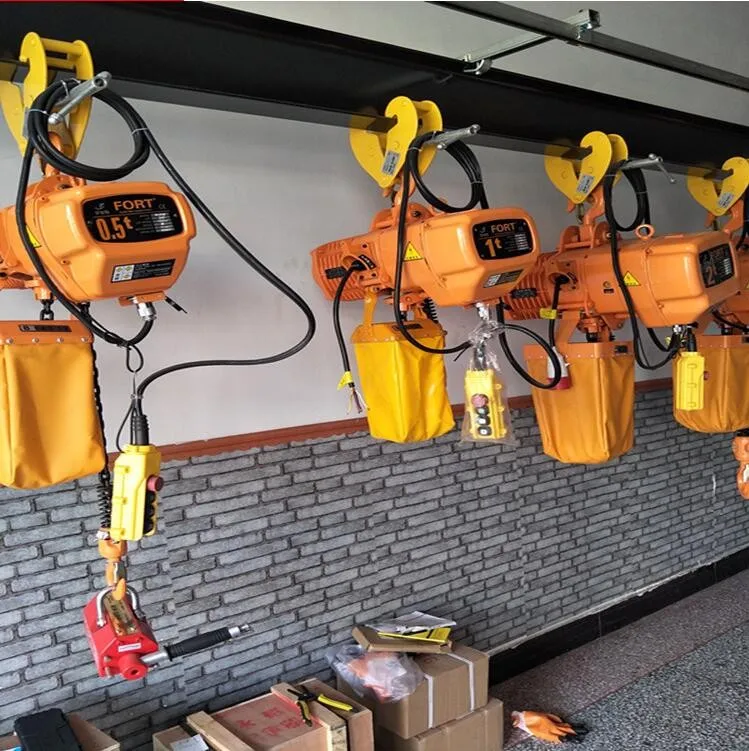

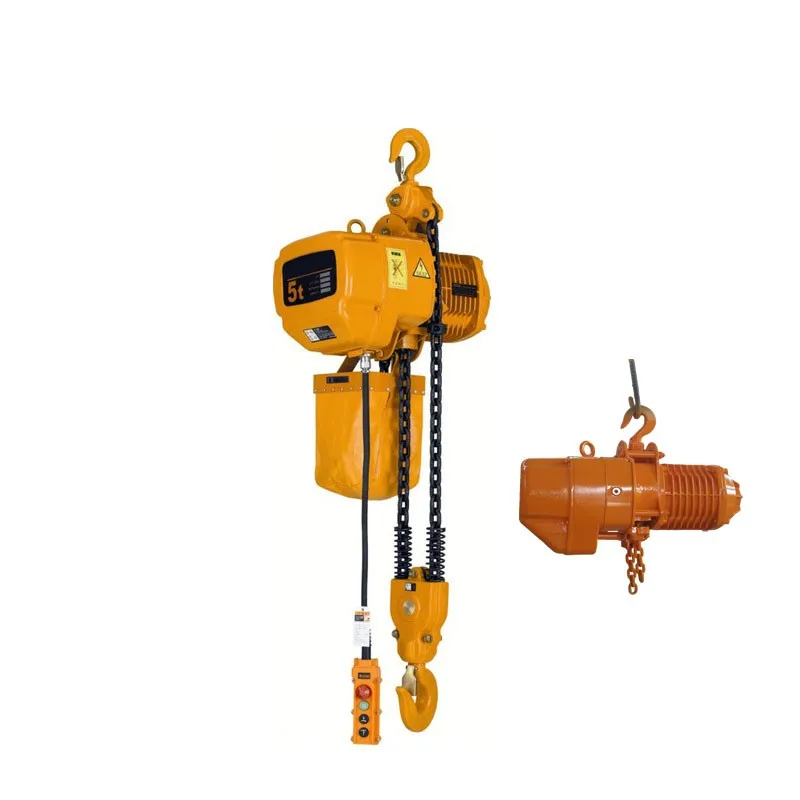

Detailed Images
Certifications

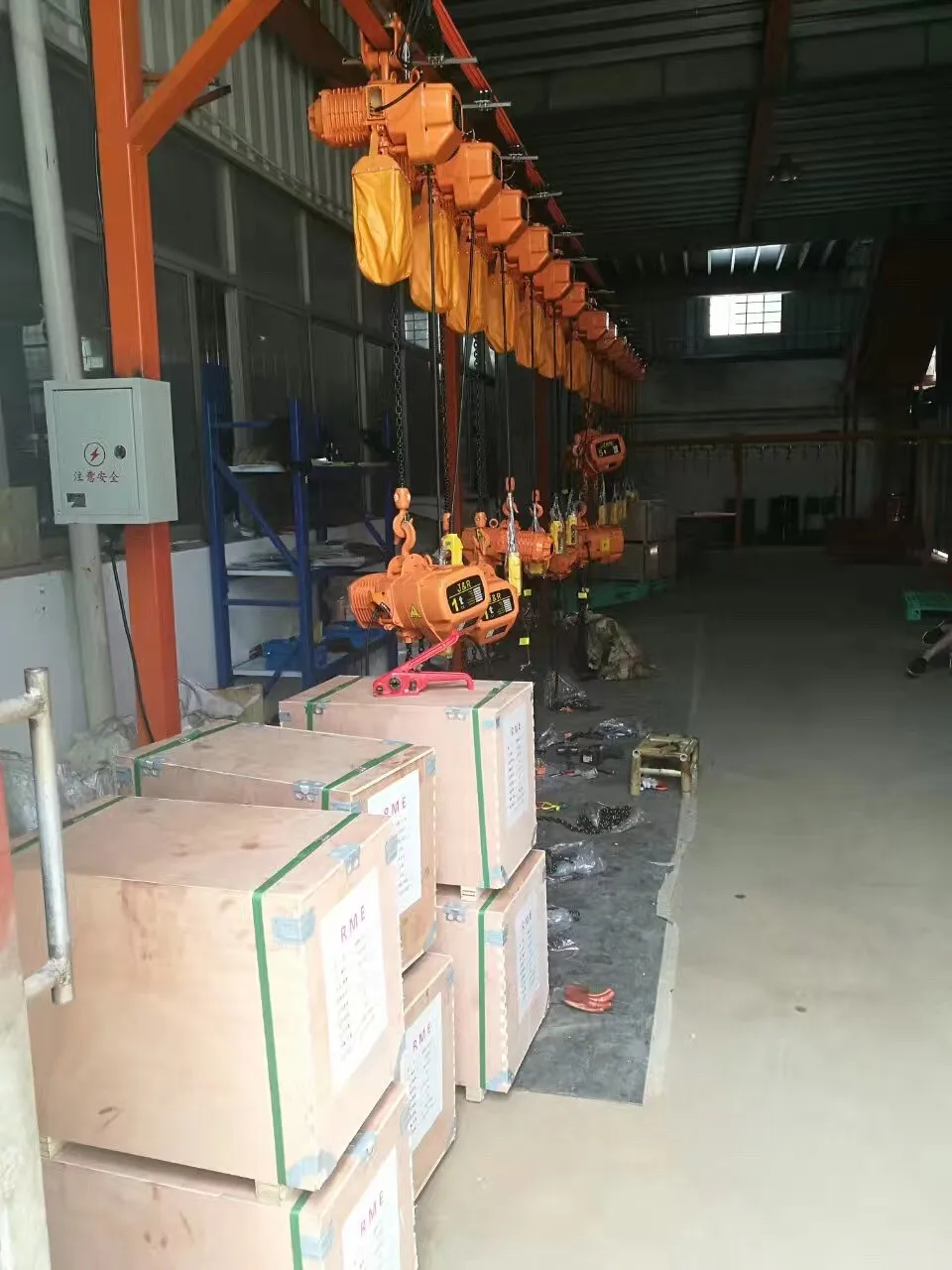

Packing & Delivery
0.5t
54x34x41cm, 43x28x27cm
1t
60x38x46cm
55x35x25cm
2t
73*46*55cm
55x36x27cm
3t
73*46*55cm
56x35x33cm
5t
73*46*55cm
61*44*35cm
Our Company

Nanning Yongte Electromechanical Equipment Co., Ltd. is a company with superior quality, competitive price, excellent service. Found in 2003, located in the capital of Guangxi Zhuang Autonomous Region--Green city Nanning. Our products include Machinery Industry, Hardware Industry, Tool Industry, Lifting Equipment, Lashing Equipment, Material Equipment and many others. The company's products serve a wide variety of commecial and industrial applications that require the safety and quality provided. We only offer the best products with best quality to customers.

FAQ

1.What information should I let you know if I want to get a quotation?

1. Lifting capacity.
2. Size.
3. Power supply: Voltage.
4. Would be better if you have drawings of your plant.

2.What about the lead time for mass production?
Hoestly, it depends on the order quantity and specification and the season you place the order. Within 30 days will be ok. Generally speaking, we suggest you start inquiry two months before the date you would like to get the products at your country.

3.What is your terms of delivery ?
We accept EXW,FOB,CFR,CIF,etc. you can choose the one which is the most convenient or cost effective for you .

4.Which payment terms will you receive ?
T/T, Western Union, Paypal

5.How about your quality control before shipment?
All products will have been strictly quality checked and tested in house before packing.All products will be well packed before shipping .


6.How long is the warranty ?
The whole machine of all our products have 12 months warranty , and we sure the product will be free from maintenance within warranty period .Low charge for continue maintenance when warranty is expired.
