Good quality 0.5t kito chain hoist with trolley

FOB Reference Price:Get Latest Price
$300.00 - $800.00 / Sets | 1 Set/Sets 0.5 ton chain block hoist with trolley (Min. Order)
Model Number:
HHBB
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Hebei, China
Brand Name:
Yongte
Usage:
Construction Hoist
Power Source:
Electric
Sling Type:
Chain
Maximum Lifting Weight:
0.5t
Maximum Lifting Height:
100m
Lift Speed:
6.6m/min
Certification:
CE ISO
Warranty:
1 Year
Standard Lifting Heigh:
3m
Test load:
0.5(ton)
Travelling Speed:
10 or 20 m/min
Travelling Motor:
0.45 kW
Lifting Motor:
3.0 kW
Working Voltage::
3P/ 200V-600V
Control Voltage:
240V/360V/480V
Working Level:
M4/1Am
Key Words:
0.5t kito chain hoist
After-sales Service Provided:
No overseas service provided
Supply Ability
Supply Ability:
1000000 Set/Sets per Month 0.5 ton chain block hoist with trolley
Packaging & Delivery
Packaging Details
As per your reques
Plywood packing (composite material box), pallet
Port
Shanghai, shenzhen
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 7 To be negotiated



        Good quality kito type 0.5t kito chain hoist with trolley







Application:



    Electric Chain hoist is typical of unique optimal structure in shortening the distance between the machine body and the beam tracks, applicable to operations in side low buildings, especially suitable for use in temporarily erected plant buildings or on the sites where expansion of effective hoisting spaces inside the buildings is required the Most important parts of the Machine is Chain and brake system.



                                                Technical Specification
Good quality nitchi 2t electric chain hoist with trolley— HHBB02-01
ModelHHBB0.5-01HHBB01-01HHBB02-01HHBB03-01
Capacity(t)0.5123
Standard Lifting Height(m)3333
Lifting Speed(m/min)6.86.66.65.4
Lifting MotorPower(kw)0.751.533
Rotation Speed(r/min)1440144014401440
Phases3333
Voltage(v)200-660200-660200-660200-660
Frequency(Hz)50/6050/6050/6050/60
Operating MotorPower(kw)0.40.40.40.75
(Electric Trolley Type)Rotation Speed(r/min)1440144014401440
 Operating Speed(m/min)11/2111/2111/2111/21
 Phases3333
 Volatge(v)200-660200-660200-660200-660
 Frequency(Hz)50/6050/6050/6050/60
 Load Chain Falls1111
Chain SpecificationØ6.3Ø7.1Ø10.0Ø11.2
Test Load(t)0.6251.252.53.75
Weight(kg)4761115122
I-Beam(mm)58-15358-15382-178100-178
(Electric Trolley Type)
Chain Add Weight Per Meter(Kgs)0.811.12.32.8











 Sheel:
  1. The Maxload Electric Chain Hoist is made of light aluminum alloy shell, light but hard.
  2. With cooling fin, easy and quick Bring the Heat out.



 Break System:
  1. Side Magnetic Braking Device, Ensure lock the hoist
  2. Mechanical braker, Dual braking system, much more safety.


 Limit Switch:
  With up & down Limit Switch, to prohibit the chains from exceeding for safety.

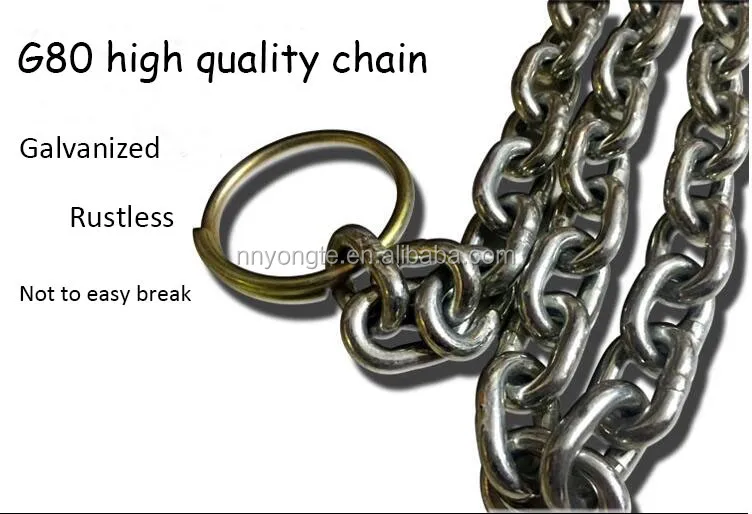

 Chain:
  FEC G80 Chain, Origina imported from Japan. Anti-Rust and Anti-corrosion



 Electromagnetic contactor:
  1. With Schneider Electric (TESSIC), can be used safely under high frequency.
  2. Can be installed Variable-Vrequency Drive (VFD Electric) Can be suitable for Singlle Phase Power supply.



 Inverse phase sequence protecting device:
  It is sepcial electrical installation which controls the circuit not to work in case of wiring error in the power supply.



Gear:
  The gear made of alloy steel, Through the heat treatment.



 Level of Protection Grade(IP Grade):
  1. Hoist IP Grade: IP54
  2. Push Buttom IP Grade: IP65



 Power supply:
  All kinds of voltage can be custom-made. 200V-660V, 50HZ/60HZ, 1P/3P



 Working Grade:
  M4/1Am


Advantage:

♦ Superior quality

♦ Competitive price

♦ Excellent service

♦ Short lead time

♦ Most of the items stock are available



Packaging & Shipping

 Packaging: as per your request

  Plywood packing (composite material box), pallet





Company Information



Nanning Yongte Electromechanical Equipment Co., Ltd. is a company with superior quality, competitive price, excellent service. Found in 2003, located in the capital of Guangxi Zhuang Autonomous Region--Green city Nanning. Our products include Machinery Industry, Hardware Industry, Tool Industry, Lifting Equipment, Lashing Equipment, Material Equipment and many others. The company's products serve a wide variety of commecial and industrial applications that require the safety and quality provided. We only offer the best products with best quality to customers.



Trade process



FAQ



1.What information should I let you know if I want to get a quotation?

1. Lifting capacity.

2. Size.

3. Power supply: Voltage.

4. Would be better if you have drawings of your plant.



2.What about the lead time for mass production?

Hoestly, it depends on the order quantity and specification and the season you place the order. Within 30 days will be ok. Generally speaking, we suggest you start inquiry two months before the date you would like to get the products at your country.



3.What is your terms of delivery ?

We accept EXW,FOB,CFR,CIF,etc. you can choose the one which is the most convenient or cost

effective for you .



4.Which payment terms will you receive ?

T/T, Western Union, Paypal



5.How about your quality control before shipment?

All products will have been strictly quality checked and tested in house before packing.All  products will be well packed before shipping .



6.How long is the warranty ?

The whole machine of all our products have 12 months warranty , and we sure the product will be free from maintenance within warranty period .Low charge for continue maintenance when warranty is expired.
